Built for the Work Ahead
Ready for Whatever Comes Next

Lightweight Strength That Outperforms Steel

High-strength aluminum delivers durability without unnecessary weight.

Proudly Made in the USA Since 1986

American-built trailers and work products trusted nationwide.

Designed for Commercial & Recreational Use

Built to handle demanding jobs, daily hauling, and custom applications.

Standard Features

Standard features engineered for strength, longevity, and everyday reliability.

  • All aluminum construction
  • .150 thick extruded aluminum main frame
  • Punched 1" x 2" pocket holes in .150 main frame
  • 3" I-beam crossmembers (.190 thick) on 16" centers

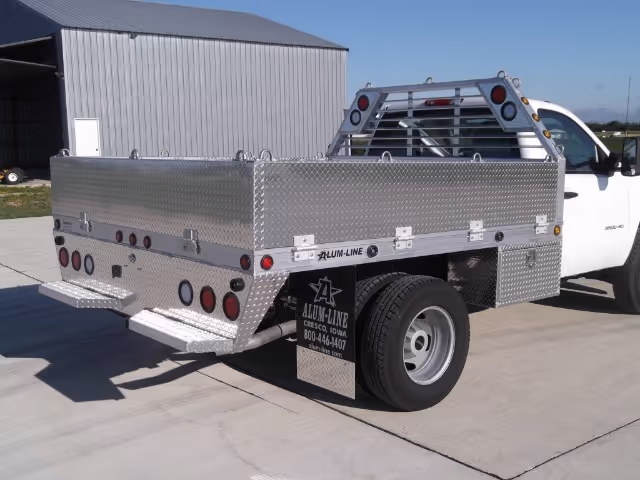

  • 10" .125 diamond plate rear light skirt with angled gussets
  • Heavy duty 3" I-beam mounting sills (.190 thick) (on some models)
  • Heavy duty 4" channel mounting sills (.250 thick) (on some models)

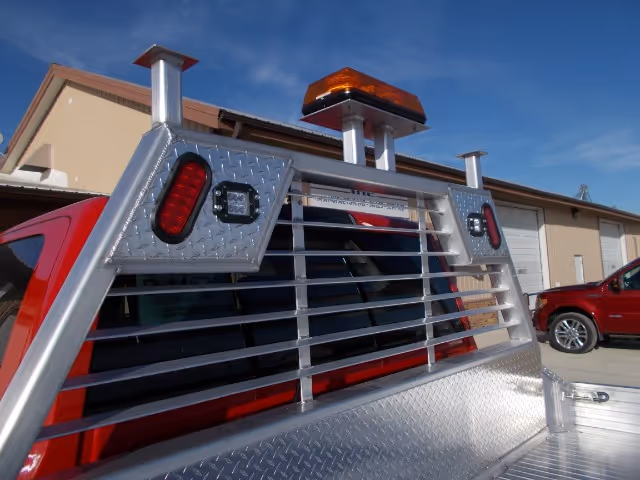

  • 1" x 2" tubular constructed tapered headache rack with open window
  • 7' L x 80" W (fits short box, single wheel box delete trucks)
  • 8' 6" L x 80" W (fits long box, single wheel box delete trucks)
  • 9' L x 80" W (fits 60" CA, single wheel cab and chassis trucks)
  • 9' L x 94" W (fits 60" CA, dual wheel cab and chassis trucks except Dodge)
  • 9' 2" L x 94" W (fits 60" CA, dual wheel cab and chassis trucks including Dodge)
  • 11' L x 94" W (fits 84" CA, dual wheel cab and chassis trucks)
  • 12' L x 94" W (fits 84" CA, dual wheel cab and chassis trucks)
  • .125 aluminum diamond plate
  • Enclosed electrical wiring with connections
  • 11 sealed beam marker lights (9 on 80" wide unit)
  • 2 sealed beam stop/tail/turn lights
  • L.E.D. light package
  • 17" tall .125 diamond plate bulkhead built into headache rack

Optional Features

Optional enhancements designed to tailor your build for specific jobs, loads, and real-world use cases.

  • 1/2" thick extruded aluminum main frame
  • 3" I-beam crossmembers (.190 thick) on 12" centers
  • 16" .125 diamond plate rear light skirt with angled gussets
  • Heavy duty 6" channel mounting sills (.250 thick)
  • 2" x 2" tubular constructed tapered headache rack with open window
  • Tapered corners or notch-outs
  • Increase length of bed (up to 24')
  • Increase width of bed
  • .190 aluminum diamond plate
  • 1" extruded flooring with built in I-beam supports
  • 1-1/4" extruded flooring with built in I-beam supports
  • #1 treated pine or optional hardwood (I-beams on 12" centers)
  • Hinged 14" x 14" gooseneck trap door
  • Hinged 32" x 32" 5th wheel opening with double doors
  • 3" deep by 14" wide open through built into floor
  • Heavy-duty 2" rub rail (.375 thick) with 2" x 4" stake pockets on 24" centers
  • 2000# stainless steel recessed rope rings
  • 3500# recessed swivel tie rings
  • Tow-Rax tie down system
  • Aluminum E-track tie down system
  • Decorative tie rails

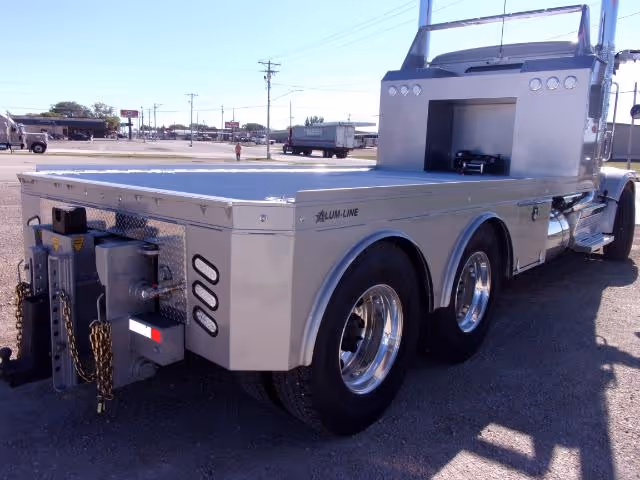

  • 22K 5th wheel hitch with rails installed
  • 2-5/16" ball plate
  • Drop hitch - tube type (10K cap.)
  • Heavy-duty rubber cushion adjustable hitch
  • Heavy-duty drop hitch - tube type (14K cap.)
  • B&W turnover ball hitch
  • Extra marker lights
  • Extra stop/tail/turn lights
  • 2 sealed beam stop/tail/turn lights and two reverse lights in headache rack
  • L.E.D. backup lights
  • Electric brake kit and wiring

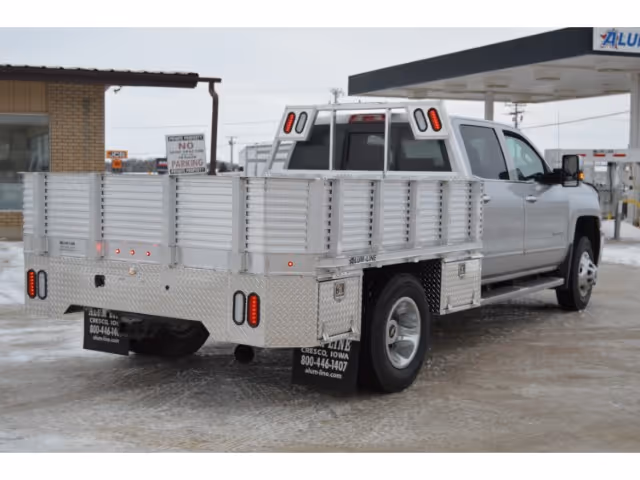

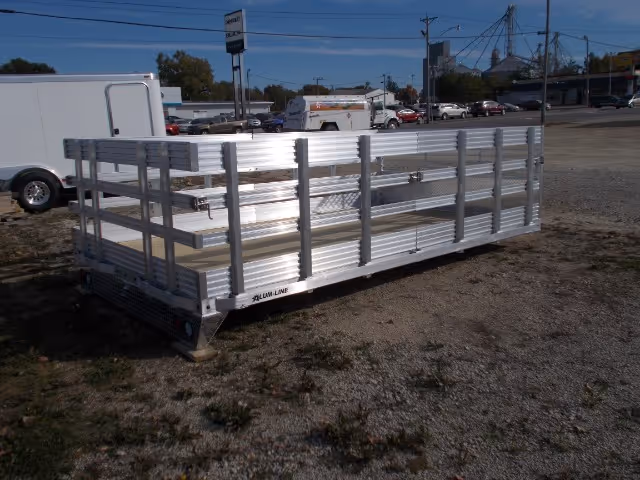

  • Aluminum drop in side racks (7", 14", and 36" tall)
  • Extruded western sides 14" to 7"
  • Drop in diamond plate tapered sides (12" tapered down to 4")
  • Hinged sides or solid welded sides
  • 10" tall extruded sides with end gate

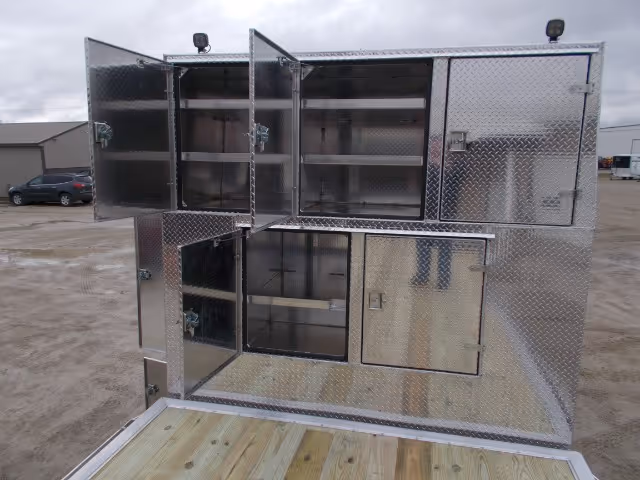

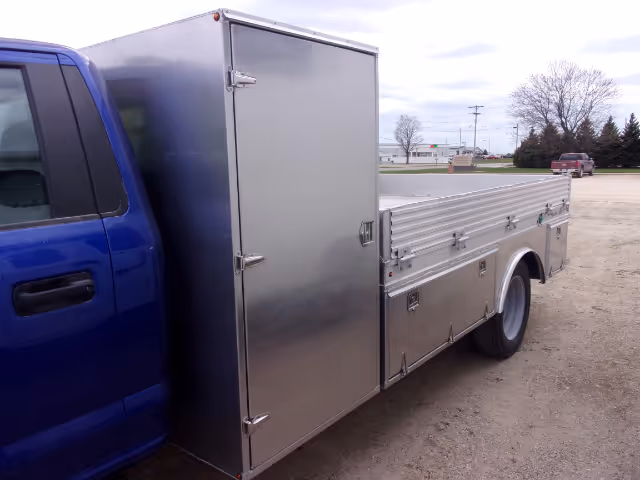

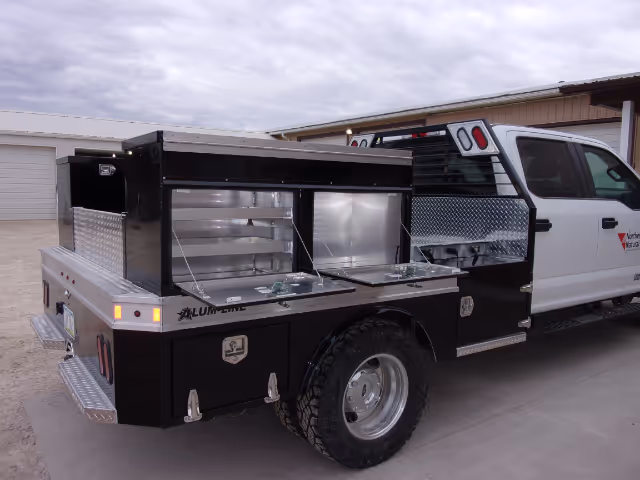

  • Above body boxes, upright side boxes, and underbody boxes of different sizes
  • Recessed aluminum fuel intakes
  • 16" deep side skirting
  • Rolled fender flares
  • Expanded mesh for headache rack window
  • 2" x 1/4" flat bar louvers welded into headache rack window

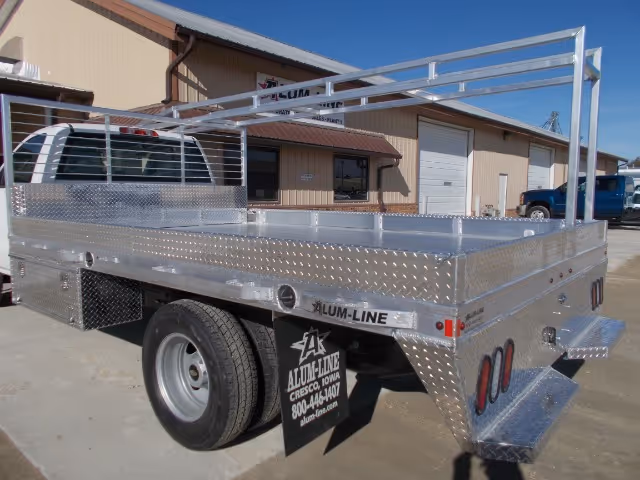

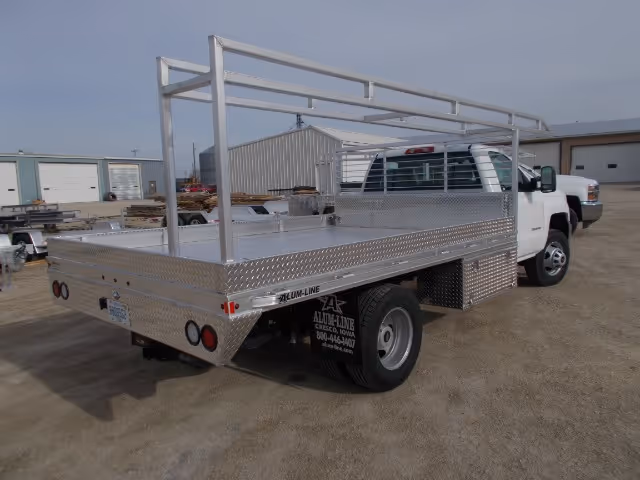

  • Above ladder rack
  • Rubber dock bumper

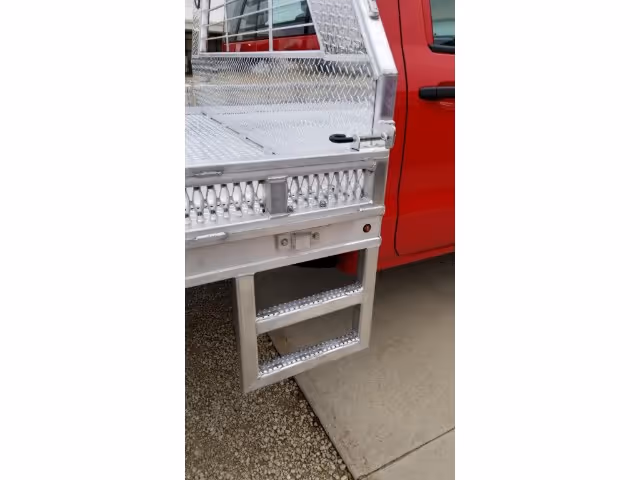

  • 6" diamond plate step bumper
  • 8" diamond plate step bumper
  • Grip strut step bumper
  • V-notch in step bumper
