Built for the Work Ahead
Ready for Whatever Comes Next

Lightweight Strength That Outperforms Steel

High-strength aluminum delivers durability without unnecessary weight.

Proudly Made in the USA Since 1986

American-built trailers and work products trusted nationwide.

Designed for Commercial & Recreational Use

Built to handle demanding jobs, daily hauling, and custom applications.

Standard Features

Standard features engineered for strength, longevity, and everyday reliability.

  • 6'6" inside height
  • 8' width

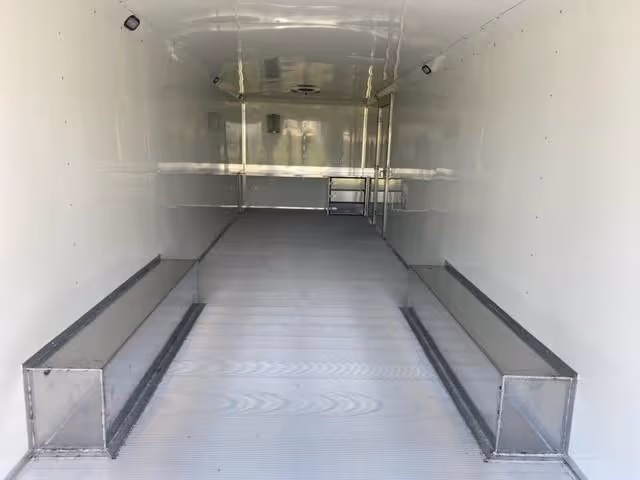

  • Non-skid tongue and groove aluminum extruded flooring
  • Tubular side posts on 16" centers
  • 2" x 5" tubular rear frame
  • 4,800# rubber torsion axles for 16' and under
  • 7,000# rubber torsion axles for 18' and longer

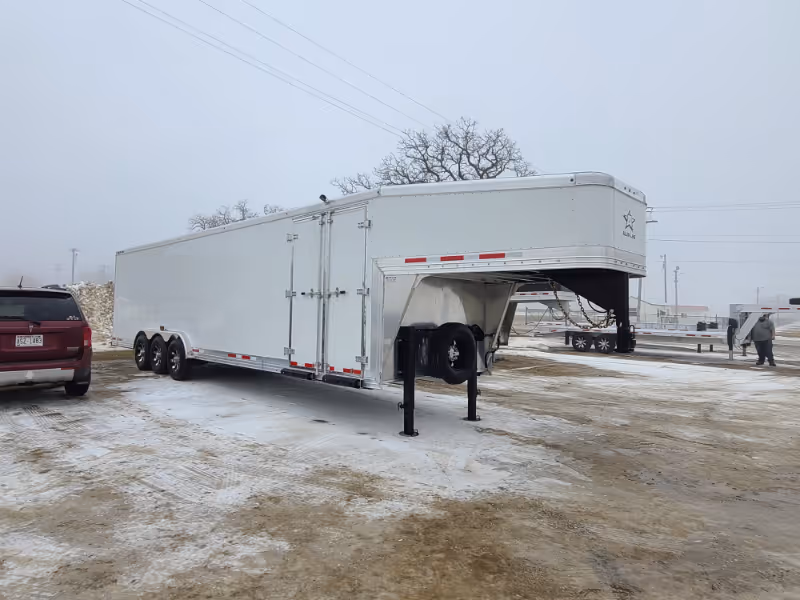

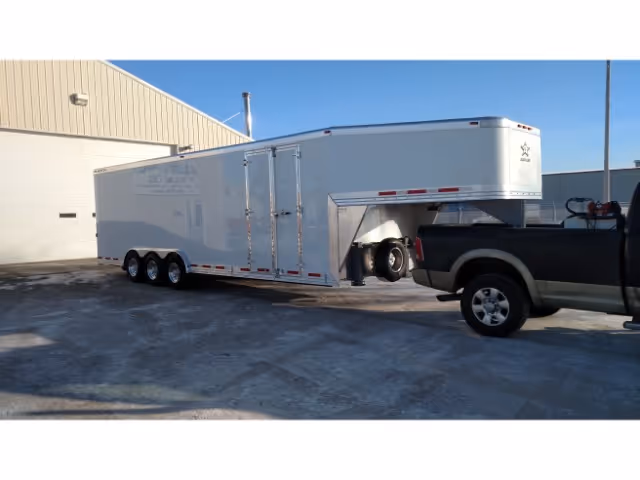

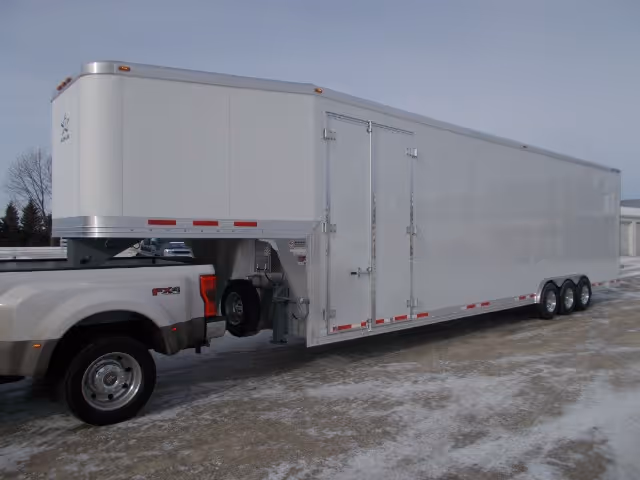

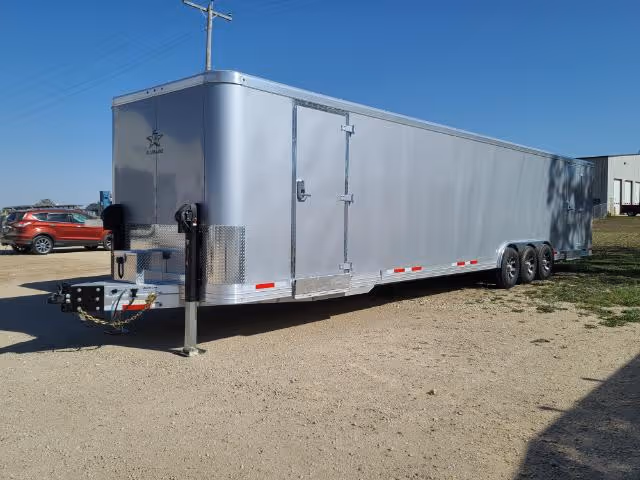

  • Triple axle set-up for 32' and longer
  • Aluminum rims

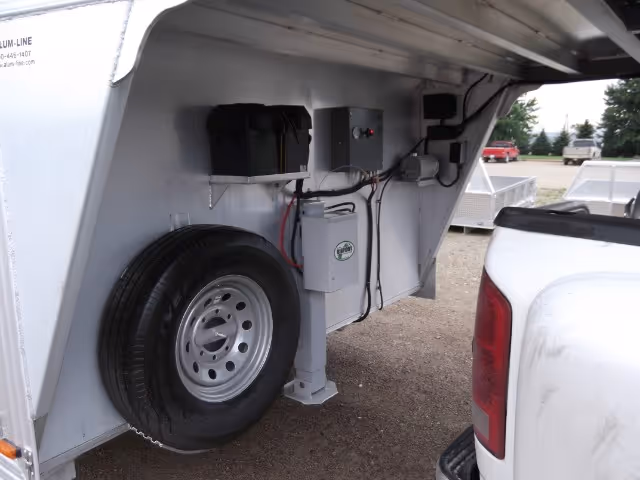

  • Spare tire and carrier
  • Electric brakes on each axle

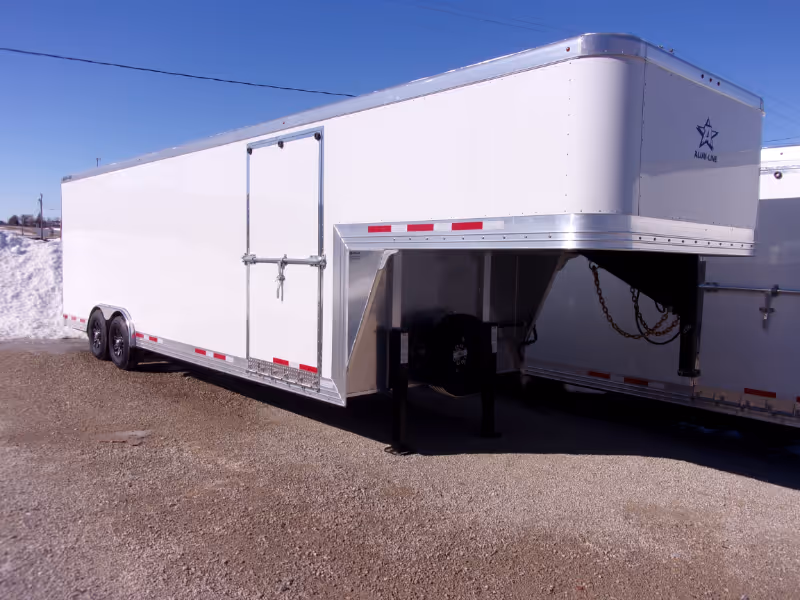

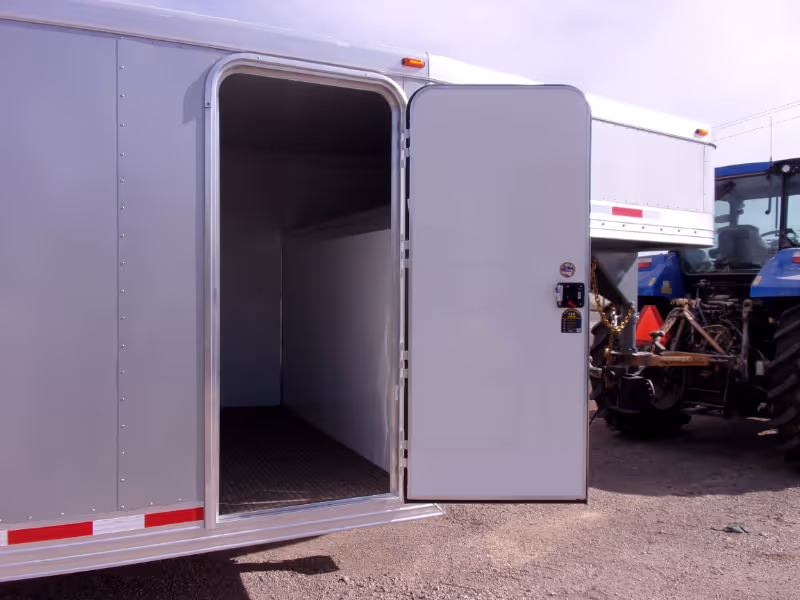

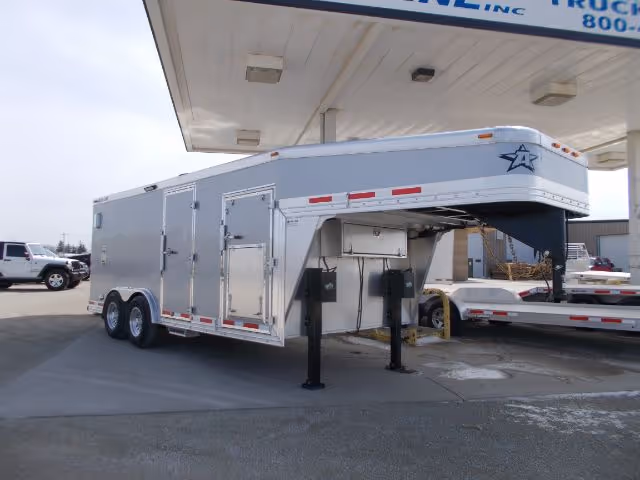

  • Side entry door

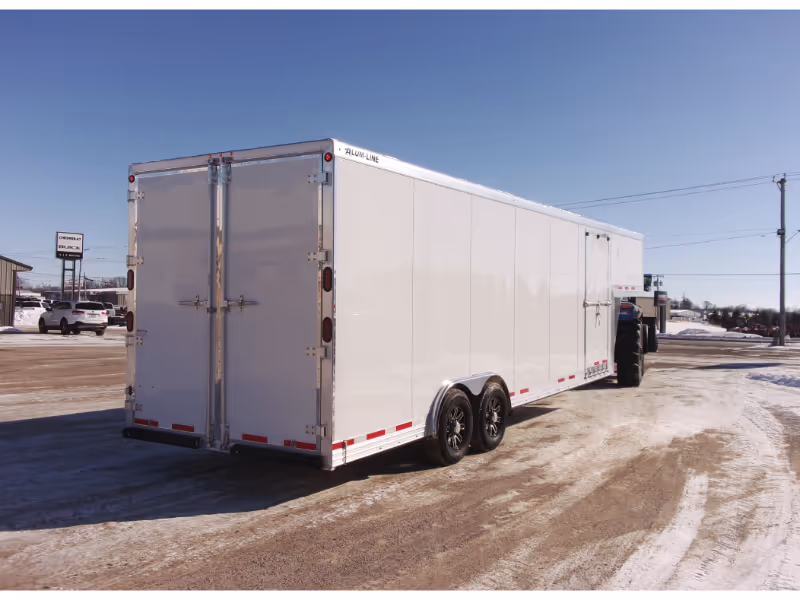

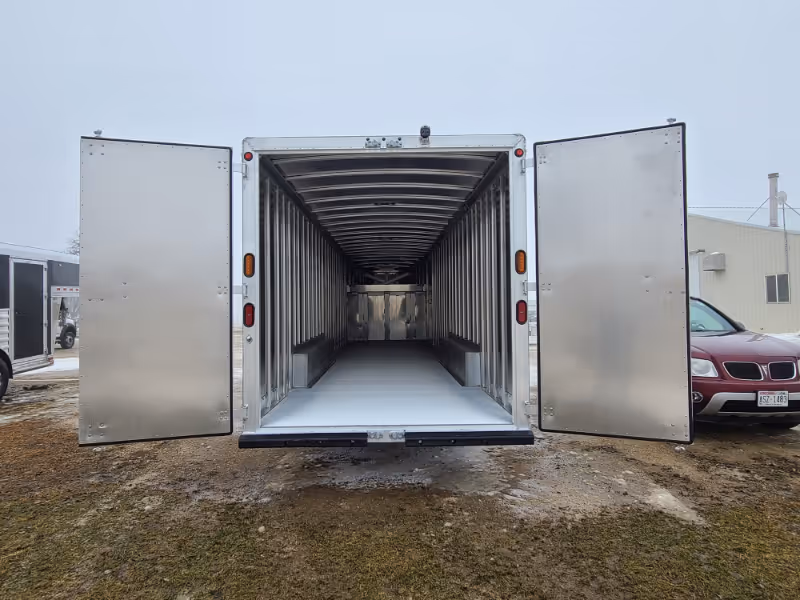

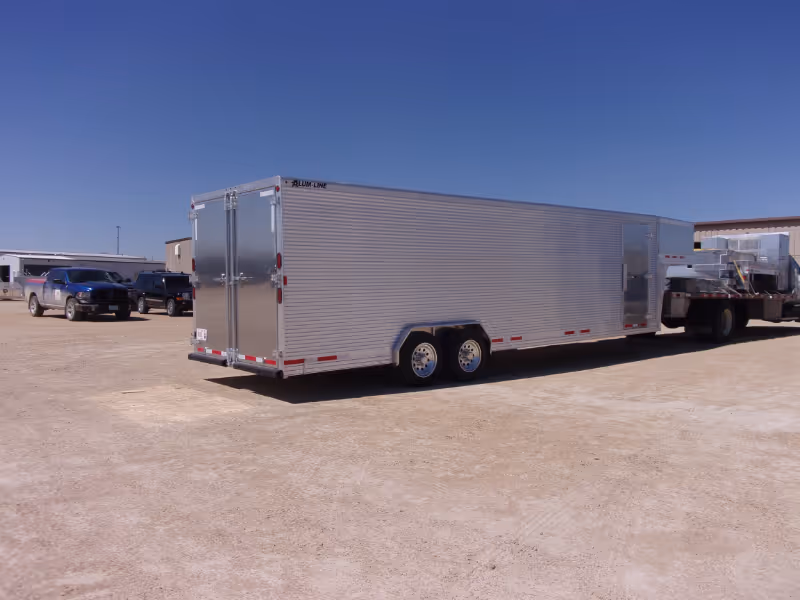

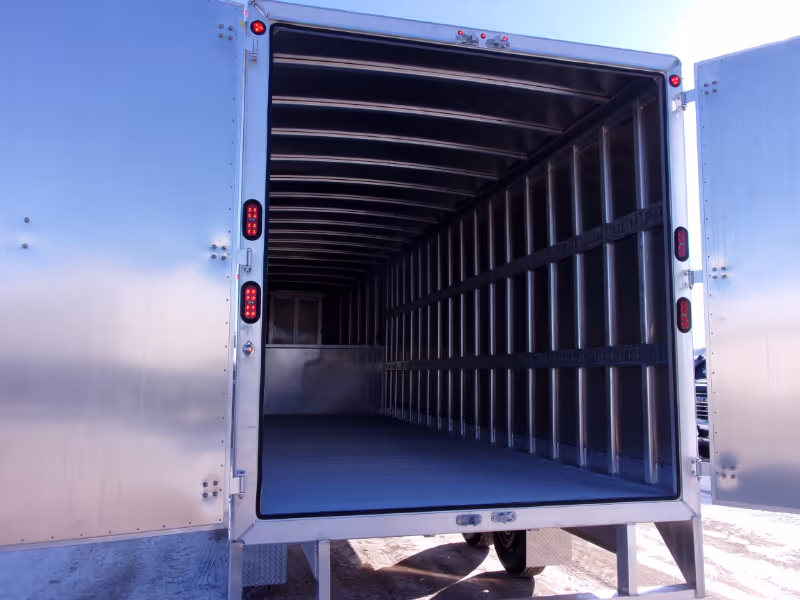

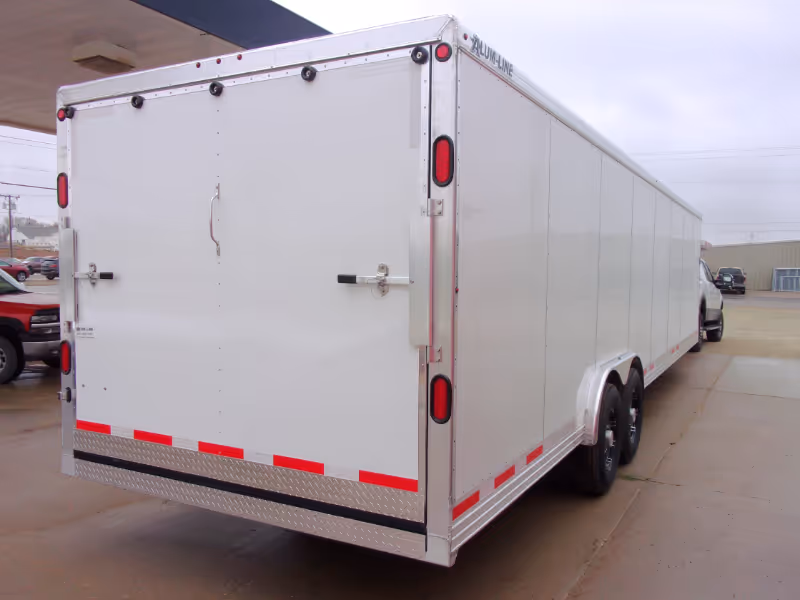

  • Double doors in rear opening

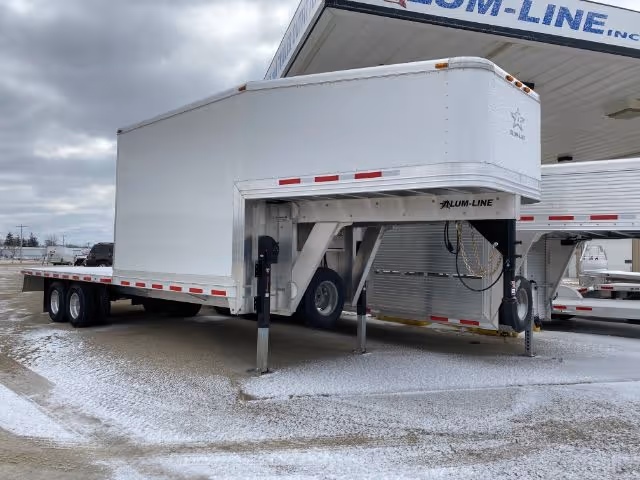

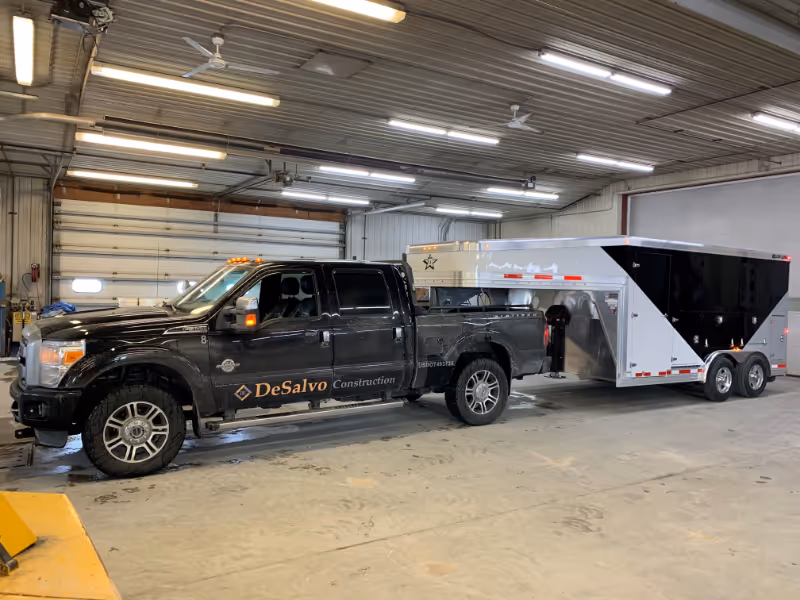

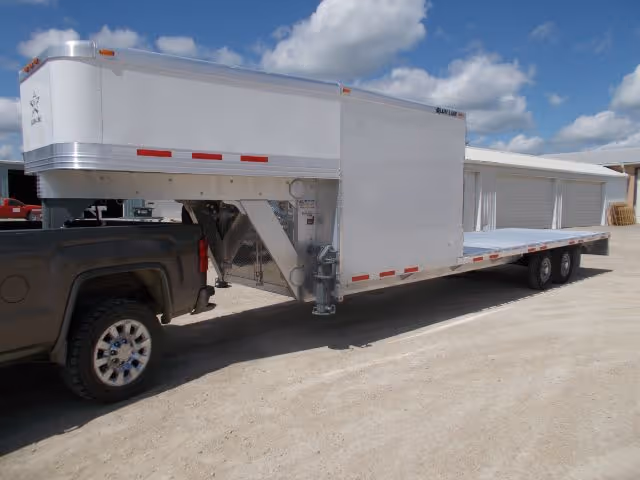

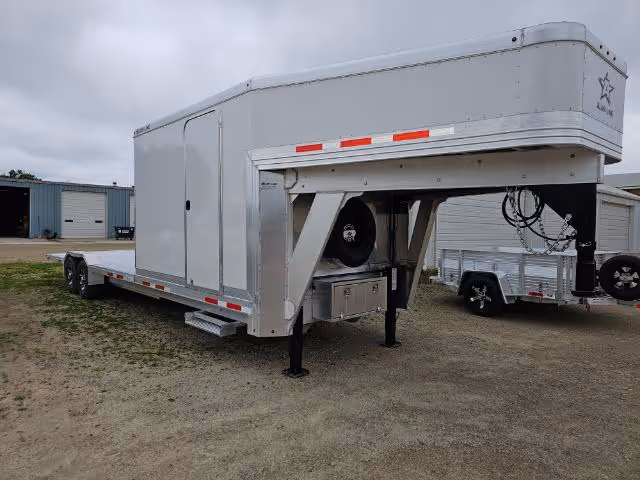

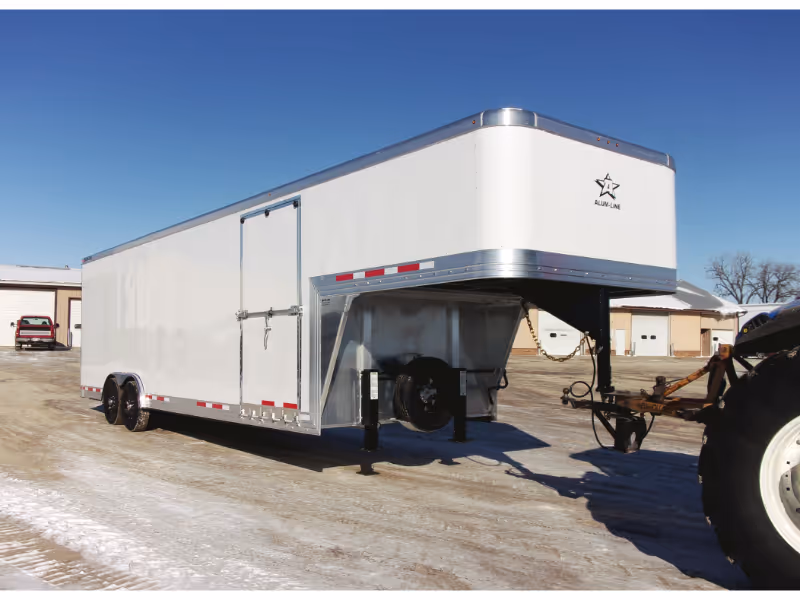

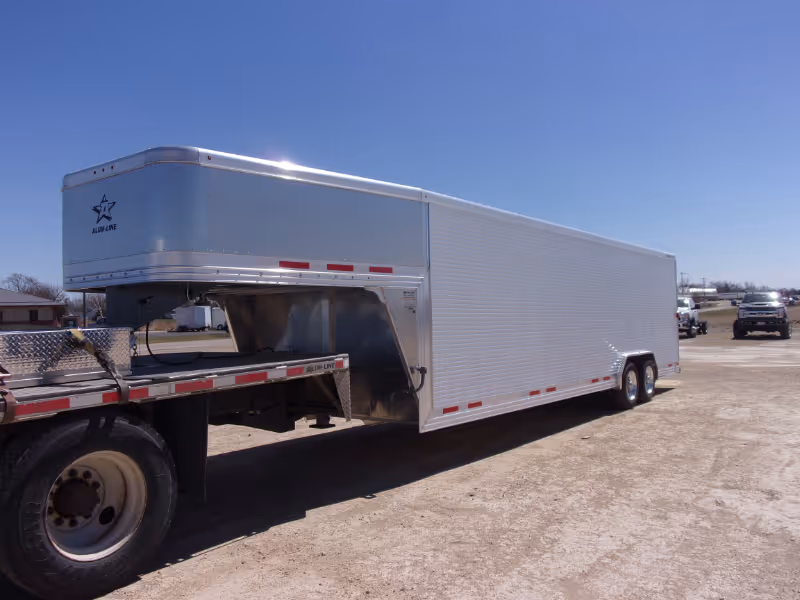

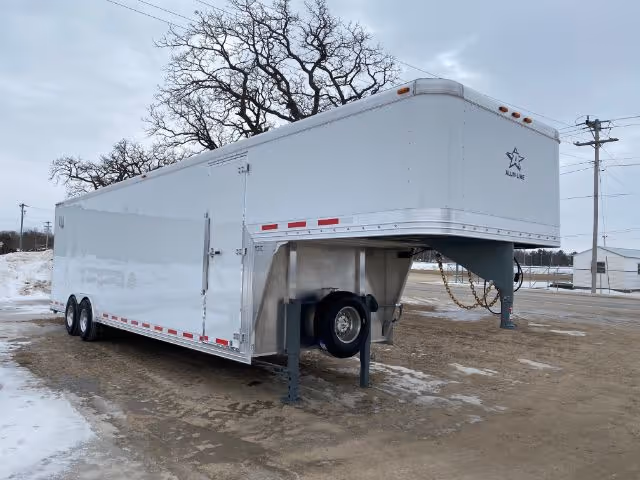

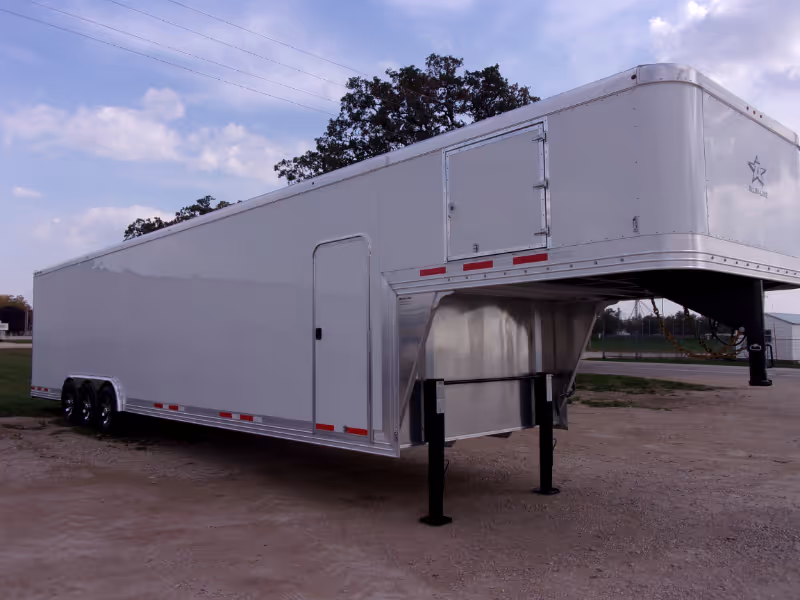

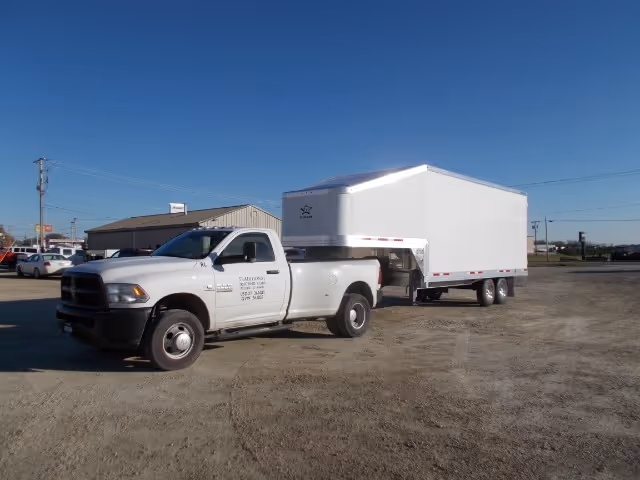

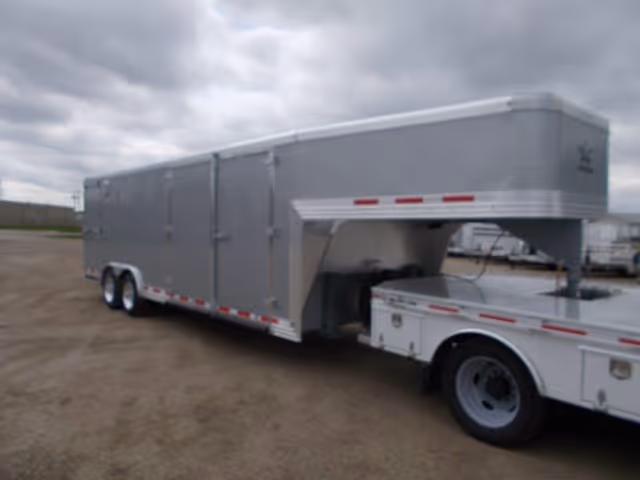

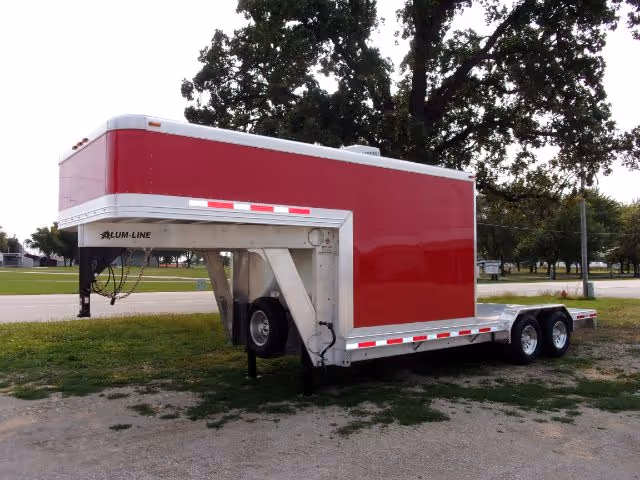

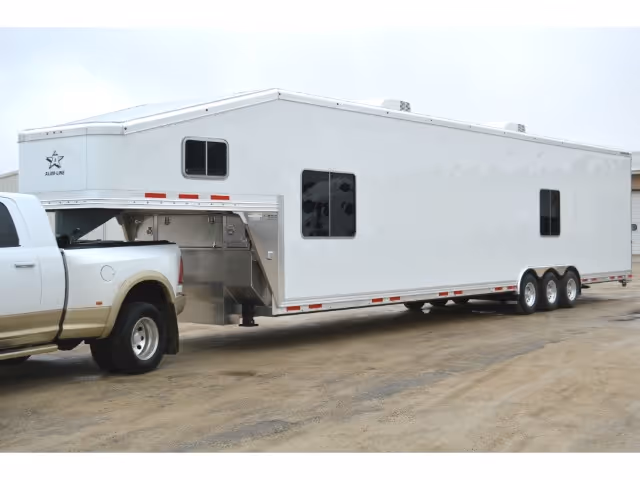

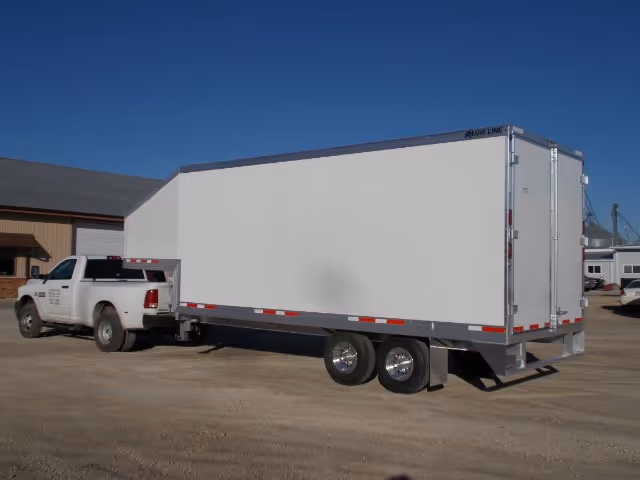

  • 8' gooseneck nose assembly with aerodynamic design
  • Full width, full height, or combination gooseneck nose
  • 2-5/16" ball type coupler
  • Adjustable coupler
  • White baked enamel .040 aluminum outside skin
  • Enclosed electrical wiring with connections junction box
  • Two inside dome lights
  • 14 sealed beam marker lights
  • 4 sealed beam stop/tail/turn lights
  • L.E.D. light package
  • Break-away switch and battery
  • Safety chains

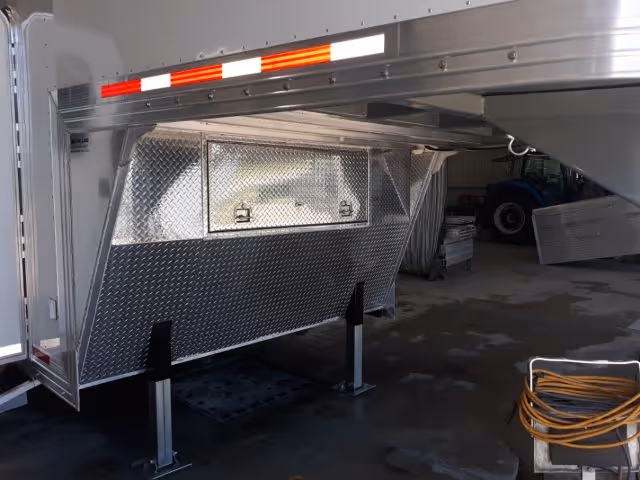

  • Heavy-duty spring loaded landing leg

Optional Features

Optional enhancements designed to tailor your build for specific jobs, loads, and real-world use cases.

  • Height increase and decrease on 6" intervals
  • 6'8" width
  • 100" width
  • 2" wood floor with crossmembers on 12" centers
  • Dove tail or sloped floor option
  • Rear rubber dock bumpers across lower rear frame with skid plate
  • 8,000# rubber torsion axles
  • 10,000# rubber torsion axles
  • Aluminum rims with radial tires
  • Elecdraulic brakes on each axle

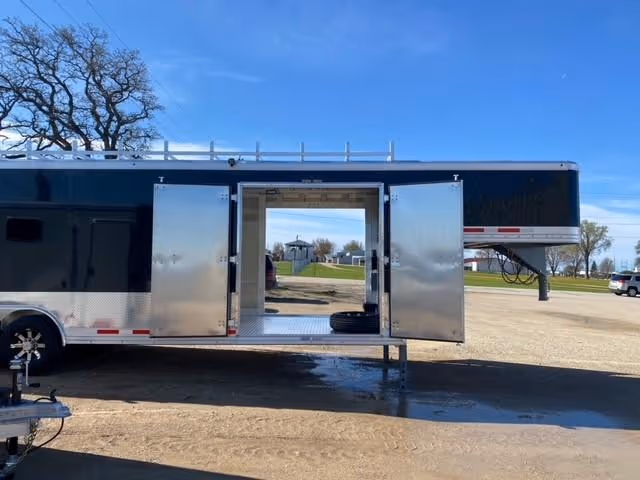

  • Extra side entry doors
  • Camper style door with window and screen

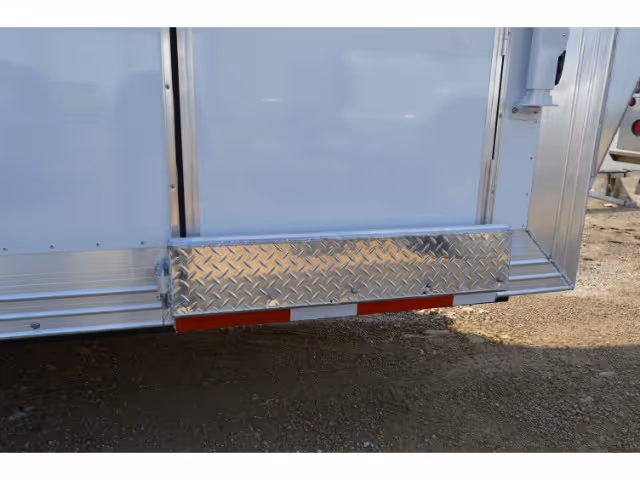

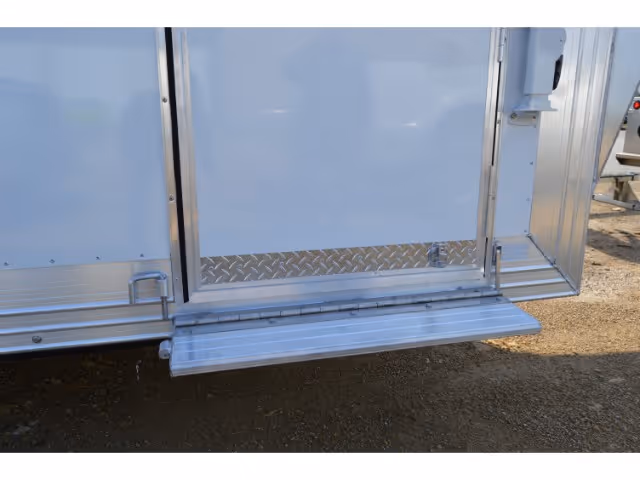

  • Pull-out side door step
  • Side loading and unloading ramp

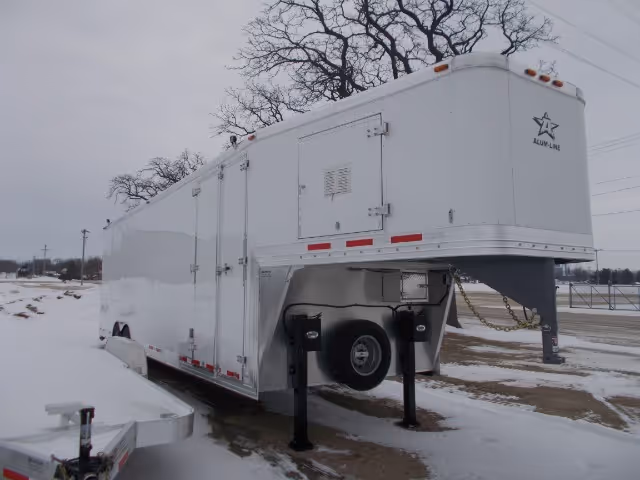

  • Generator door with louvered vent

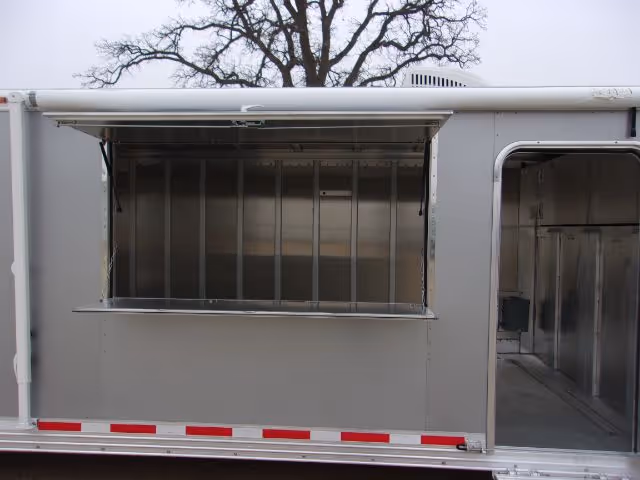

  • Vending doors
  • 2,000# stainless steel recessed rope rings
  • 3,500# recessed swivel tie rings
  • Tow-Rax tie down system

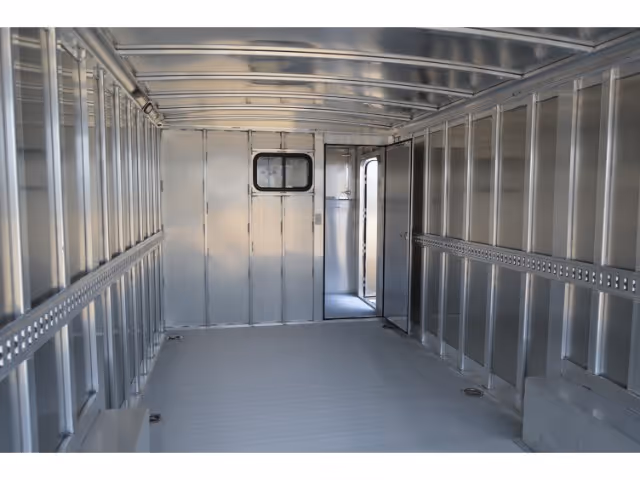

  • Aluminum E-track tie down system
  • Steel E-track tie down system

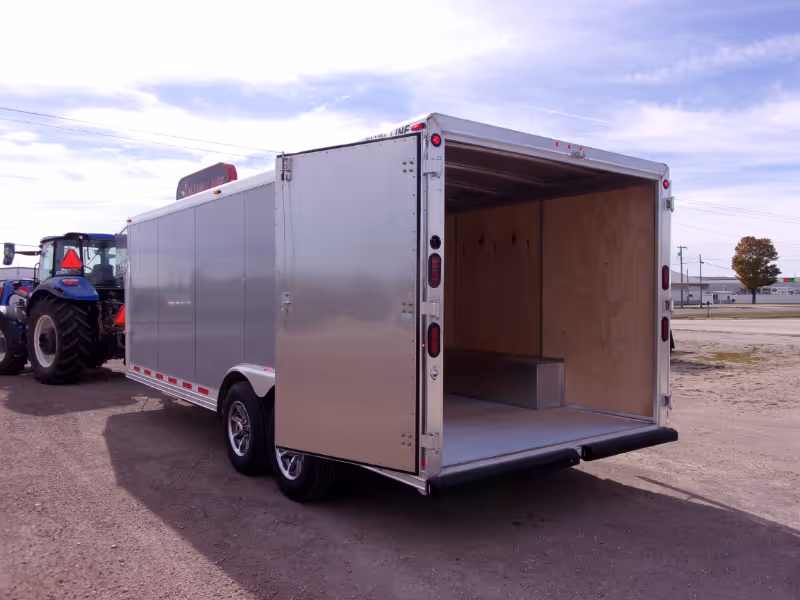

  • Full swing rear door
  • Rear rollup door
  • Double doors in rear opening
  • Extra camlock on rear to swing rear door either end

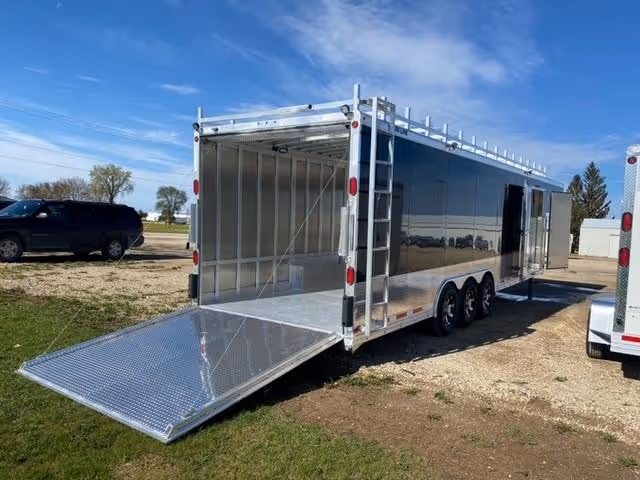

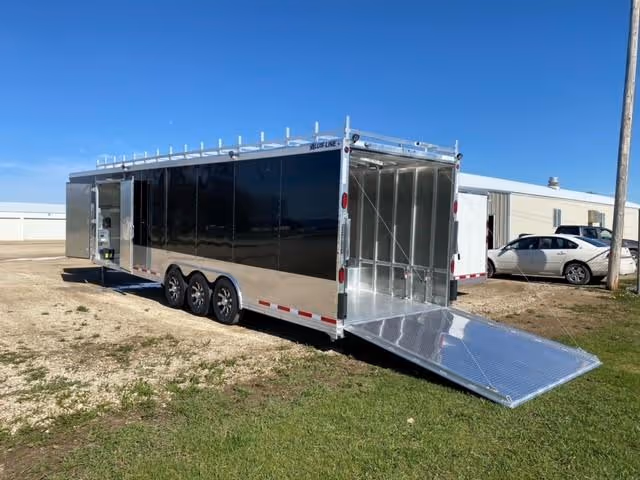

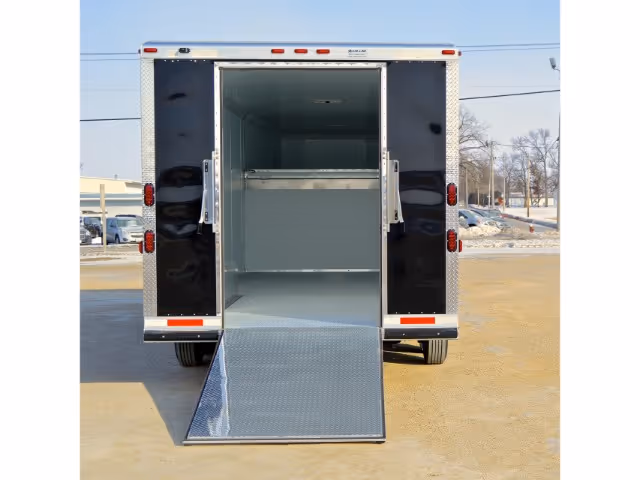

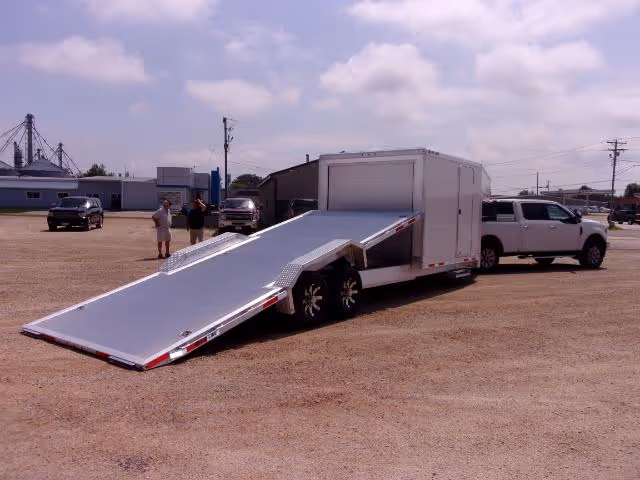

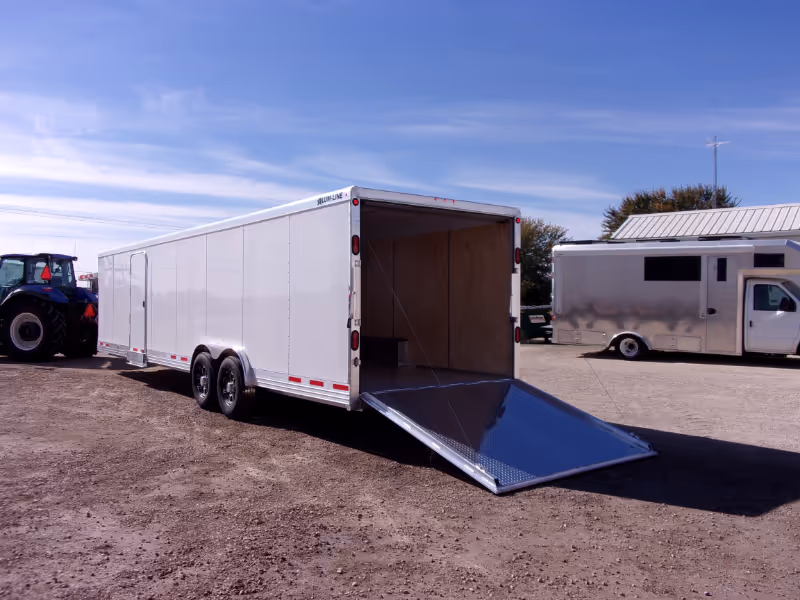

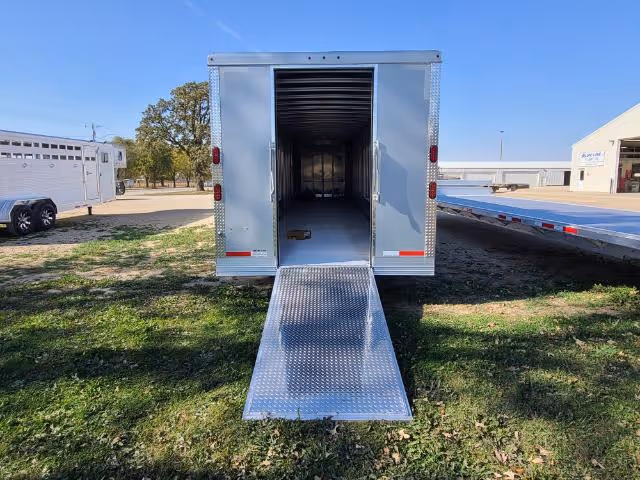

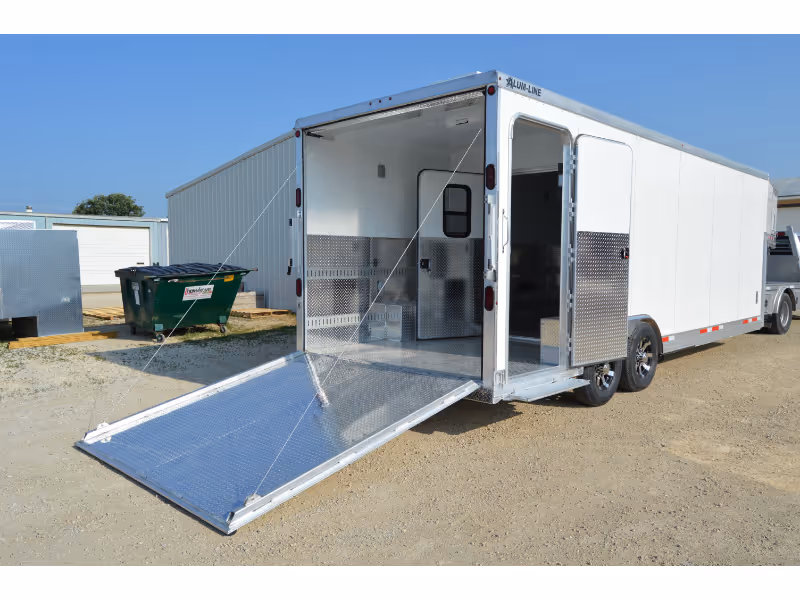

  • Cable assisted full fold up ramp
  • Side access door in nose

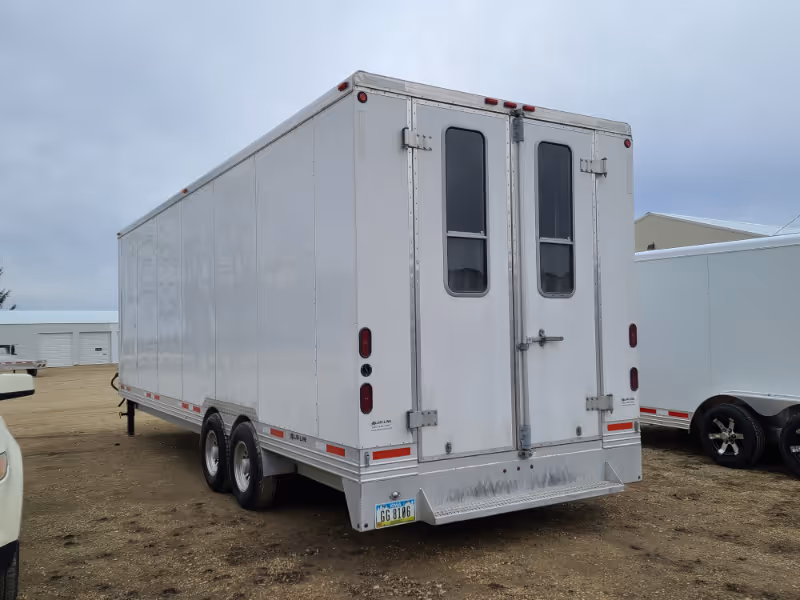

  • Kick-out style window with screen
  • Deep nose with king pin set-up

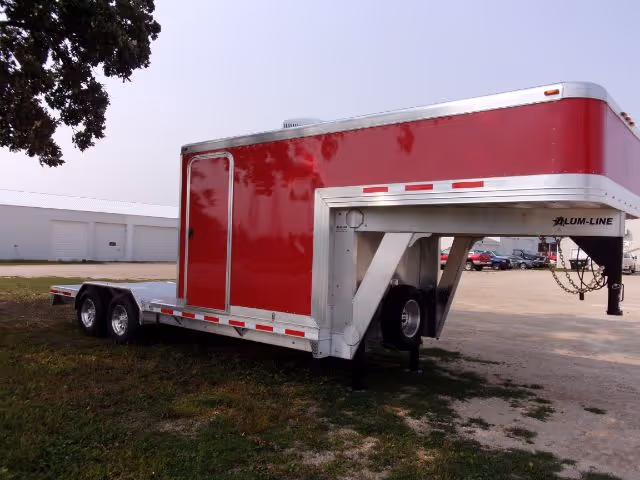

  • Colored side sheets

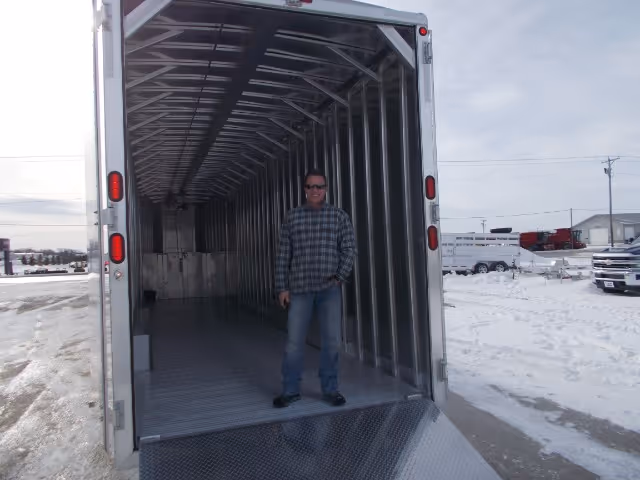

  • Aluminum lining on walls
  • 3/8" Glassboard on walls

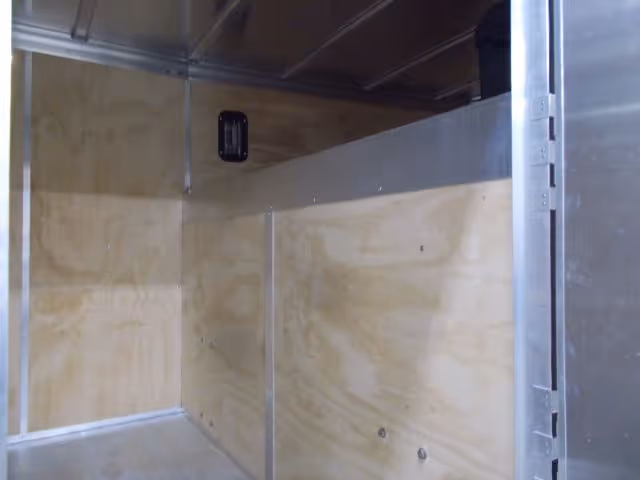

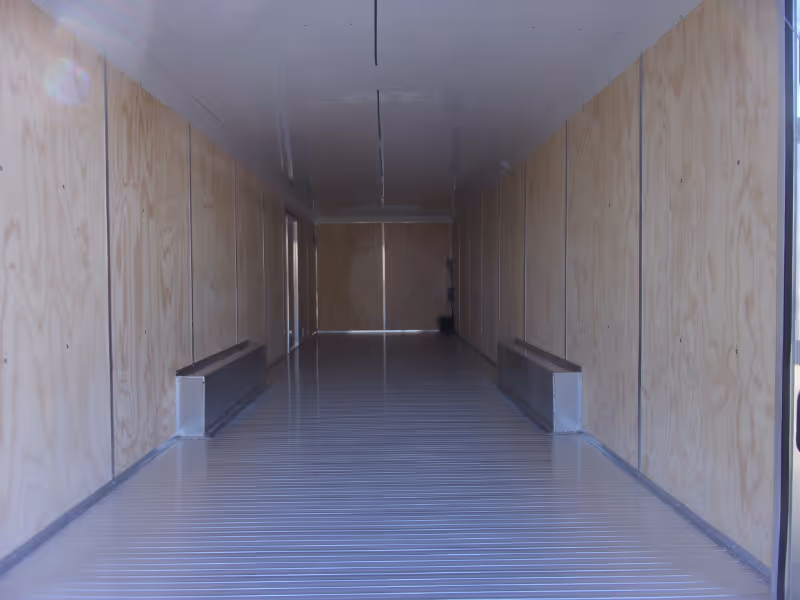

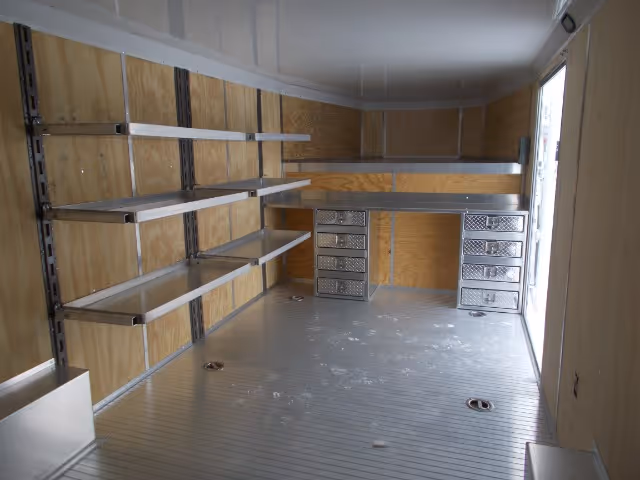

  • 3/8" plywood on walls
  • Aluminum liner on ceiling
  • Full insulation in walls of trailer
  • Windows of different sizes with and without screens
  • Aluminum 2-way roof scoops
  • Crank up roof vents
  • Extra inside dome lights
  • Extra marker lights
  • Sealed beam reverse lights
  • L.E.D. reverse light
  • External loading lights
  • Trickle charger for breakaway battery
  • 110 plug-in inside
  • RV entrance plug-in
  • 4' fluorescent lights
  • 11" round lights
  • Breaker box
  • Extra landing leg
  • Dual speed landing legs
  • Electric operated hydraulic landing leg system
  • Rear 2,000# stabilizer jacks

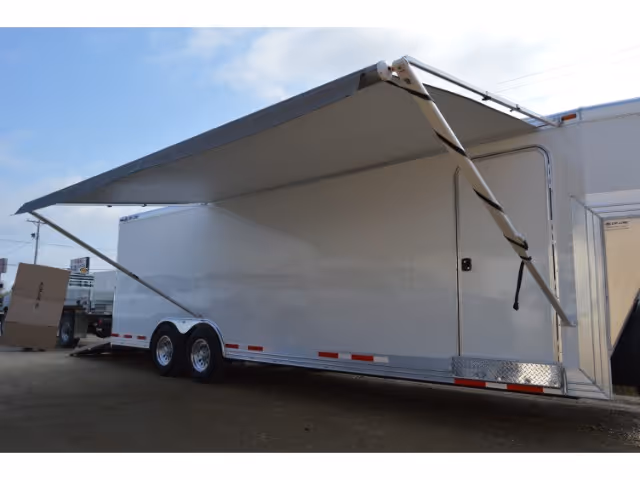

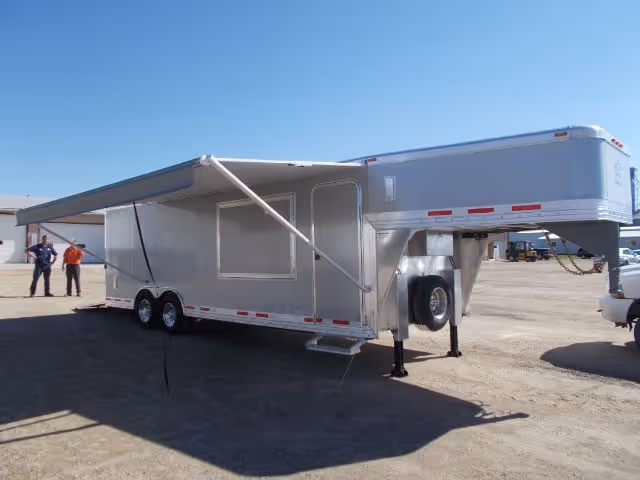

  • Roll out awnings

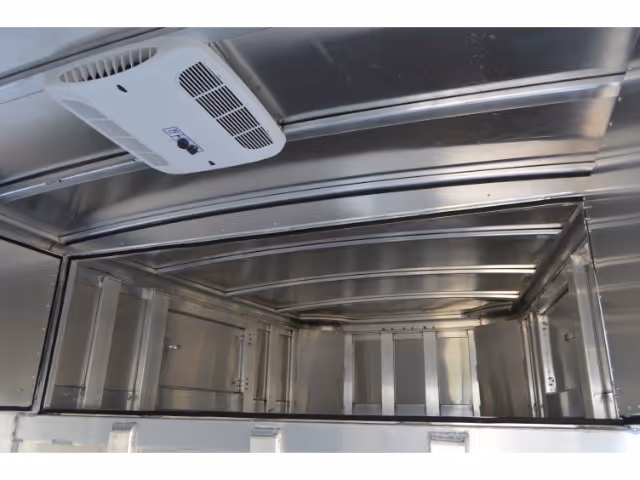

  • Roof AC with heat strip (13,500 BTU)
  • Winch bracket
  • 6,800# winch with remote control and one roller at drop
  • Tool hooks
  • Tool trays

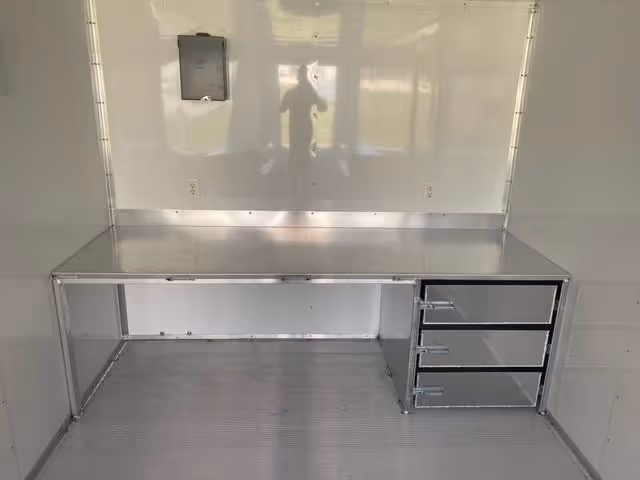

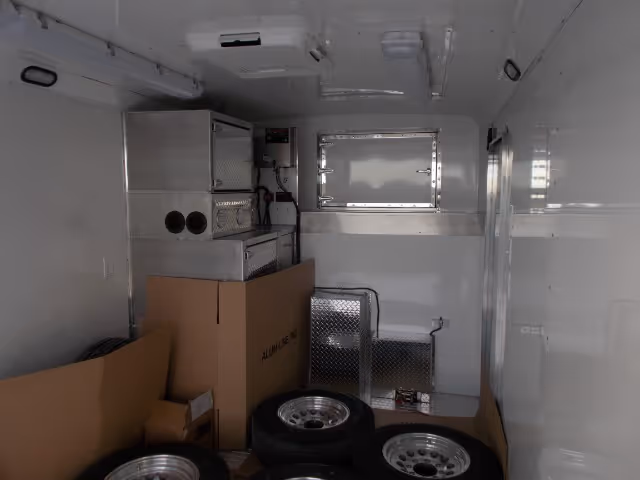

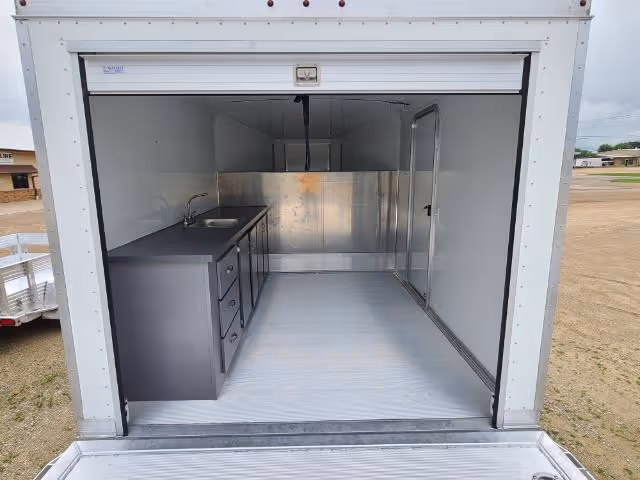

  • Inside cabinet boxes made from aluminum
