Bumper Pull Heavy Equipment Flatbed Trailers

Details & info

Alum-Line brings you Bumper Pull Heavy Equipment Flatbed Trailers with all aluminum construction for years of reliable use and real weight-saving advantages. Whether you choose a gooseneck hitch or bumper pull flatbed trailer, you are choosing the best with Alum-Line.

Bumper Pull Heavy Equipment Flatbed Trailers' standard features include our all aluminum bed using tongue and groove extruded aluminum flooring, 3" rub rail and heavy duty stake pockets on 24" centers, 7000 lb. axles, and more. Weight, artistry, and lifetime value all add up to better built heavy equipment trailers at Alum-Line.Save the hassle and go straight for the best with Alum-Line Bumper Pull Heavy Equipment Flatbed Trailers.

At Alum-Line, we pride ourselves for our ability to customize, and this is no exception with our Bumper Pull Heavy Equipment Flatbed Trailers. We have a knowledgeable sales staff that is willing to help you with your specific needs when choosing your heavy equipment trailers. Click on the "Specifications" tab for more information so you are ready to begin customizing your Bumper Pull Heavy Equipment Trailers today.

THE CLOSER YOU LOOK, THE MORE YOU'LL LIKE ALUM-LINE

Specifications

Main Construction Standard Feature Option
8' Width Yes
Non-skid tongue and groove aluminum extruded flooring Yes
2" Wood with I-beams on 24" centers   Yes
Combination extruded aluminum and wood deck with crossmembers   Yes
5' Solid dove tail   Yes
5' Expandable dove tail   Yes
Axles and Rims Standard Feature Option
7,000# Rubber torsion axles Yes
8,000# Rubber torsion axles   Yes
10,000# Single tire rubber torsion axles   Yes
10,000# Dual tandem rubber torsion axles   Yes
Triple axle set-up   Yes
Steel rims with radial tires (see tire chart for specifications) Yes
Aluminum rims with radial tires   Yes
Spare tire and carrier   Yes
Brakes Standard Feature Option
Electric brakes on each axle Yes
Hydraulic brakes on each axle   Yes
Elecdraulic brakes on each axle   Yes
Tie Down System Standard Feature Option
Rub rail and stake pockets on 24" centers Yes
3500# Recessed swivel tie rings   Yes
Sliding aluminum wich track with sliding winches   Yes
Ramps Standard Feature Option
Heavy-duty 6' ramps with storage Dove tail models
Two flip over ramps with expandable center   Yes
Three flip over ramps to create full ramped rear   Yes
Hitch Options Standard Feature Option
2-5/16" Ball coupler Yes
Adjustable hitch   Yes
Pintle hitch   Yes
Electrical and Wiring Standard Feature Option
Enclosed electrical wiring with connections junction box Yes
9 Sealed beam marker lights Yes
Extra marker lights   Yes
4 Sealed beam stop/tail/turn lights Yes
L.E.D. light package Yes
Sealed beam reverse lights   Yes
L.E.D. reverse light   Yes
Turn indicator mounted in center of trailer on both sides   Yes
Break-away switch and battery Yes
Safety chains Yes
Trickle charger for breakaway battery   Yes
Landing Legs and Jacks Standard Feature Option
Heavy-duty spring loaded landing leg Yes
Extra landing leg 24' and longer
Dual speed landing legs   Yes
2000# Rear stabilizer jacks   Yes
Electric operated hydraulic landing leg system   Yes
Misc. Options Standard Feature Option
Winch bracket   Yes
6800# Winch with remote control and one roller at drop   Yes
Front bulkhead wall   Yes
Underbed tool boxes   Yes

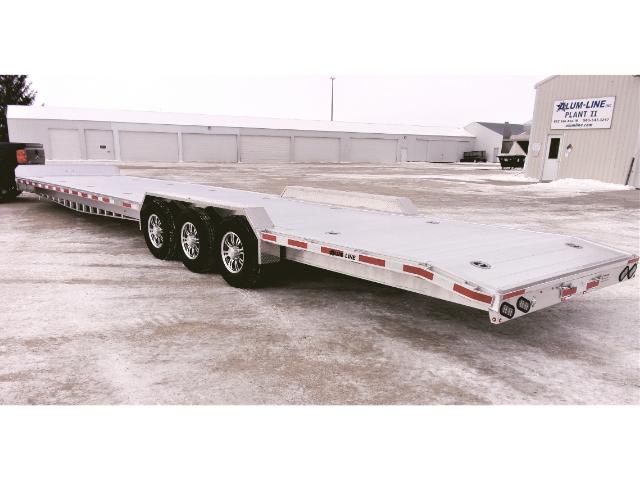

Product Photos
